library(tidyverse)
library(SpatialExperiment)
library(here)
library(ggspavis)
library(scater)
library(ggsci)
library(scran)
library(pheatmap)
library(SpaTalk)
library(Matrix)
library(Seurat)
library(igraph)
library(biomaRt)Run spatalk decomposition - s4 batch1
Load packages
Sample 4
Load reference and spe object
basedir <- here()
refSeurat <- readRDS(paste0(basedir, "/data/refSeurat_allCelltypesIntImm.rds"))
speAll <- readRDS(paste0(basedir, "/data/speAllLN.rds"))
genes <- data.frame(geneLong=rownames(refSeurat)) %>%
mutate(EnsID=gsub("\\..*", "", geneLong)) %>%
mutate(symbol=substr(geneLong, start=17, stop=nchar(geneLong)))set color palettes
colLEC <- c("#79AF97FF","#B24745FF","#DF8F44FF")
names(colLEC) <- c("SCScLEC", "SCSfLEC", "MedSinusLEC")
colBEC <- c("#48557e", "#e3a616","#9a3038")
names(colBEC) <- c("venBEC", "capBEC", "artBEC")
colFRC <- c("#800000FF", "#FFA319FF","#8A9045FF", "#155F83FF",
"#C16622FF", "#6692a3", "#3b7f60")
names(colFRC) <- c("medRCIFRC", "TRC", "ACTA2+PRC", "VSMC", "PI16+RC", "PRC1",
"BRC")
colImm <- c("#0b6647", "#54907e", "#94c78a", "#6f9568",
"#8f2810", "#d0ac21","#9e9f0b", "#486584",
"#4b5397", "#8873d3", "#6e3e7a")
names(colImm) <- c("naiveB", "GCB", "MBC", "plasmaCell",
"CD4T", "CD8Tcm", "CTL/NKcell", "ILC3", "pDC", "Mph/DC-1",
"Mph/DC-2")
colAll <- c(colFRC, colBEC, colLEC, colImm)
colPal <- c("#F0027F", "#377EB8", "#4DAF4A", "#984EA3", "#FFD700",
"#FF7F00", "#1A1A1A", "#666666", pal_futurama()(10))format sc reference data
## downsample
dim(refSeurat)[1] 39642 122538table(refSeurat$label)
ACTA2+PRC artBEC BRC capBEC CD4T CD8Tcm
1560 1048 390 1091 39380 4006
CTL/NKcell GCB ILC3 MBC medRCIFRC MedSinusLEC
10339 869 1819 17174 10129 42
Mph/DC-1 Mph/DC-2 naiveB pDC PI16+RC plasmaCell
2952 980 14118 6750 986 326
PRC1 SCScLEC SCSfLEC TRC venBEC VSMC
760 332 129 3773 2861 724 #refSeurat$pat_plus_label <- paste0(refSeurat$patient, "_", refSeurat$label)
#table(refSeurat$pat_plus_label)
#Idents(refSeurat) <- refSeurat$pat_plus_label
Idents(refSeurat) <- refSeurat$label
refSeurat <- subset(x = refSeurat, downsample = 500)
dim(refSeurat)[1] 39642 10719#table(refSeurat$pat_plus_label)
table(refSeurat$label)
ACTA2+PRC artBEC BRC capBEC CD4T CD8Tcm
500 500 390 500 500 500
CTL/NKcell GCB ILC3 MBC medRCIFRC MedSinusLEC
500 500 500 500 500 42
Mph/DC-1 Mph/DC-2 naiveB pDC PI16+RC plasmaCell
500 500 500 500 500 326
PRC1 SCScLEC SCSfLEC TRC venBEC VSMC
500 332 129 500 500 500 ## counts
sc_data <- refSeurat@assays$RNA@counts
rownames(sc_data) <- substr(rownames(sc_data), start=17,
stop=nchar(rownames(sc_data)))
## celltypes
sc_celltype <- refSeurat$label
## remove CC marker
CCmarker <- c(cc.genes.updated.2019$s.genes, cc.genes.updated.2019$g2m.genes)
dim(sc_data)[1] 39642 10719sc_data <- sc_data[-which(rownames(sc_data) %in% CCmarker),]
dim(sc_data)[1] 39545 10719## remove Mito and Ribosomal genes from reference
mito.genes <- grep(pattern = "^MT-", x = rownames(sc_data), value = TRUE)
RPS.genes <- grep(pattern = "^RPS", x = rownames(sc_data), value = TRUE)
RPL.genes <- grep(pattern = "^RPL", x = rownames(sc_data), value = TRUE)
dim(sc_data)[1] 39545 10719sc_data <- sc_data[-which(rownames(sc_data) %in% c(mito.genes, RPS.genes,
RPL.genes)),]
dim(sc_data)[1] 38478 10719vis input data

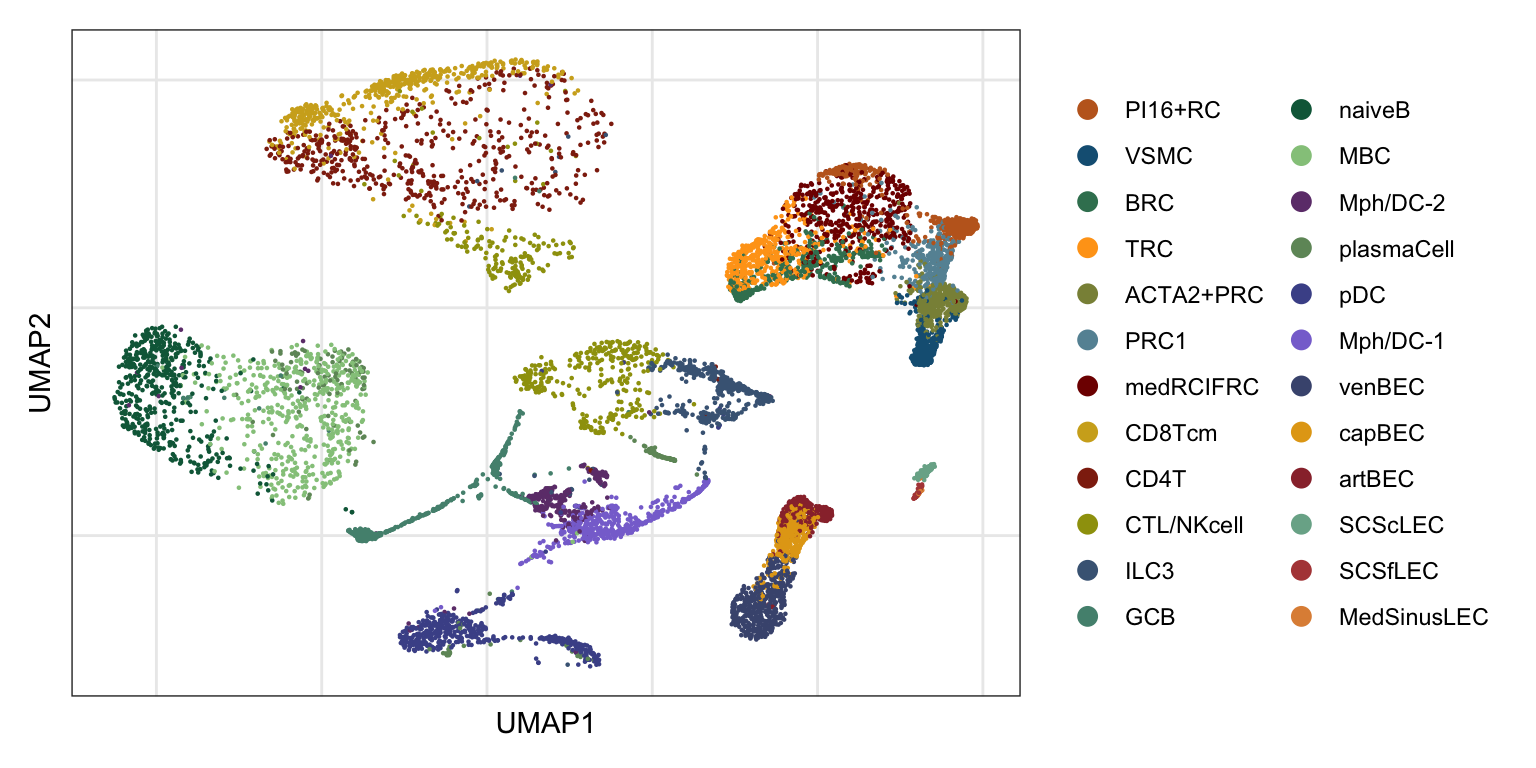

ref data
Idents(refSeurat) <- refSeurat$label
DimPlot(refSeurat, reduction = "umap", cols = colAll, raster = F, shuffle = T)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")
remove(refSeurat)ST data

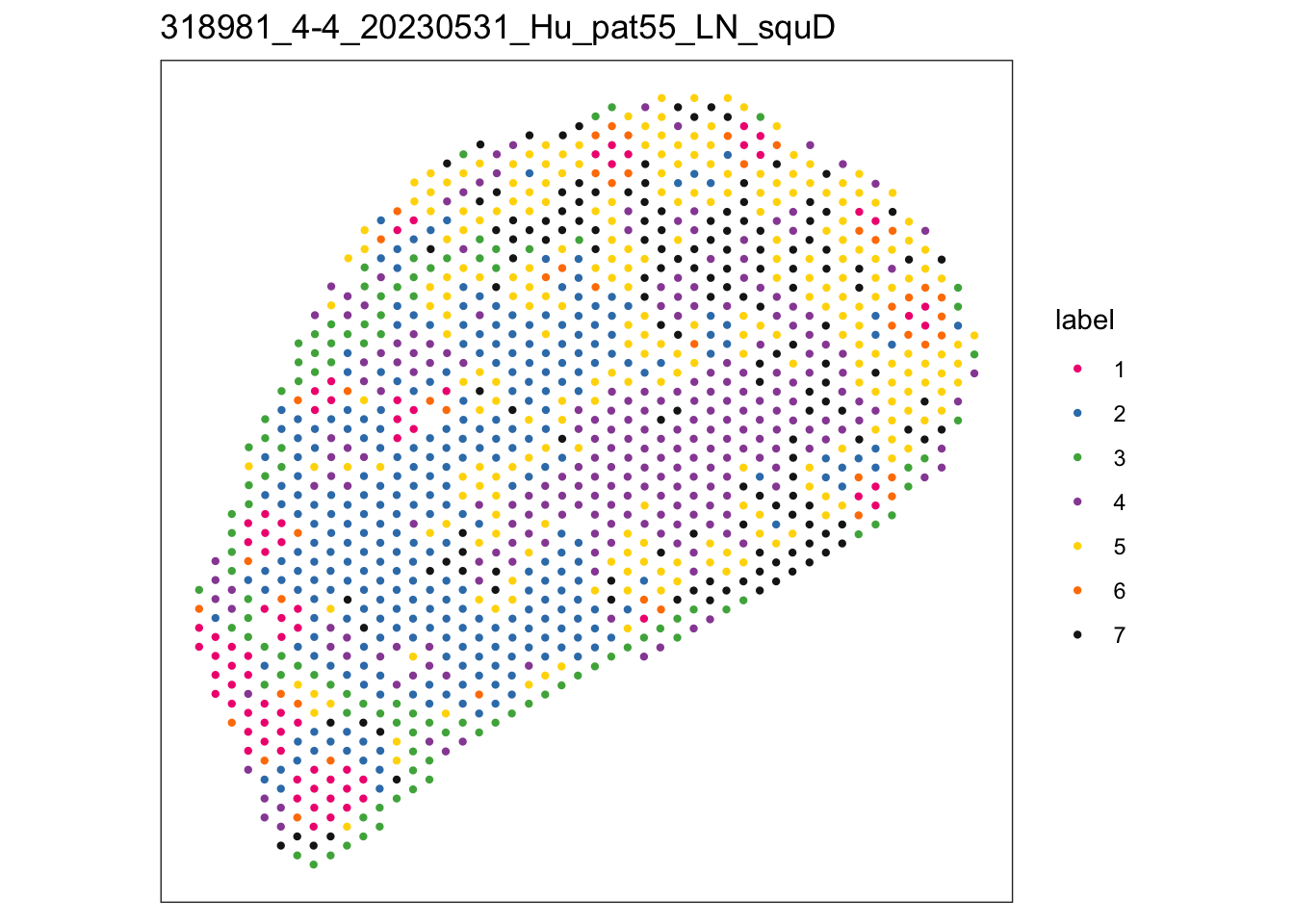

i <- 4
sid <- names(speAll[i])
spe <- speAll[[i]]
plotSpots(spe, annotate = "label",
palette = colPal, size = 0.8) +
ggtitle(sid)
remove(speAll)format spatial data
## counts
st_data <- spe@assays@data$counts
## transform gene names
genesST <- data.frame(EnsID=rownames(st_data)) %>%
left_join(., genes, by="EnsID")
mart <- useDataset("hsapiens_gene_ensembl", useMart("ensembl"))
gene_IDs <- getBM(filters= "ensembl_gene_id", attributes= c("ensembl_gene_id","hgnc_symbol"),
values = genesST$EnsID, mart= mart, useCache = F)
colnames(gene_IDs) <- c("EnsID", "symbolMart")
gene_IDs <- gene_IDs[-which(duplicated(gene_IDs$EnsID)),]
genesST <- genesST %>% left_join(., gene_IDs, by="EnsID") %>%
mutate(symbolFin=ifelse(is.na(symbol),ifelse(symbolMart =="", EnsID, symbolMart),symbol))
rownames(st_data) <- genesST$symbolFin
st_data <- rev_gene(data = st_data,
data_type = "count",
species = "Human",
geneinfo = geneinfo)
## coords
st_meta <- data.frame(spot=colnames(spe),
x=spe@int_colData@listData$spatialCoords[,"pxl_col_in_fullres"],
y=-1*(spe@int_colData@listData$spatialCoords[,"pxl_row_in_fullres"]))
obj <- createSpaTalk(st_data = as.matrix(st_data),
st_meta = st_meta,
species = "Human",
if_st_is_sc = F,
spot_max_cell = 30)save object to run CT on server
celltype decomposition
remove(st_data)
remove(st_meta)
remove(mart)
obj <- dec_celltype(object = obj,
sc_data = sc_data,
sc_celltype = sc_celltype,
if_use_hvg = T,
use_n_cores = 6,
iter_num = 100,
if_use_normalize_data = F)
saveRDS(obj, file=paste0(basedir, "/data/ST/spatalk/spatalkDecomp_s4.rds"))vis predicted celltypes
Infer cell-cell communications
vis top int
PRC to lec
lec to PRC
PRC to bec
bec to PRC
PRC to imm
imm to PRC
Session info
