visualize marker human LN
Load packages
## load packages
suppressPackageStartupMessages({
library(dplyr)
library(reshape2)
library(ggplot2)
library(cowplot)
library(purrr)
library(Seurat)
library(tidyverse)
library(ggpubr)
library(runSeurat3)
library(here)
library(ggsci)
library(pheatmap)
library(scater)
})load seurat object
basedir <- here()
## load seurat object from previous analysis
seurat <- readRDS(file=paste0(basedir,
"/data/AllPatWithoutCM_LNFSCMerged_seurat.rds"))
seurat <- subset(seurat, cond=="resting")
## set col palettes
colPal <- c(pal_nejm()(7),pal_futurama()(12))[1:length(levels(seurat))]
colPal <- c("#c29f2d", "#cb6021", "#893149", "#524b86", "#1f84aa",
"#d38c6e","#50a565","#242a8b","#297563","#667c63","#c94141")
names(colPal) <- levels(seurat)
colPat <- c(pal_nejm()(7),pal_futurama()(12))[1:length(unique(seurat$patient))]
names(colPat) <- unique(seurat$patient)
colCond <- c("#6692a3","#971c1c","#d17d67")
names(colCond) <- unique(seurat$cond)
colGrp <- pal_uchicago()(length(unique(seurat$grp)))
names(colGrp) <- unique(seurat$grp)
colOri <- pal_npg()(length(unique(seurat$origin)))
names(colOri) <- unique(seurat$origin)visualize data

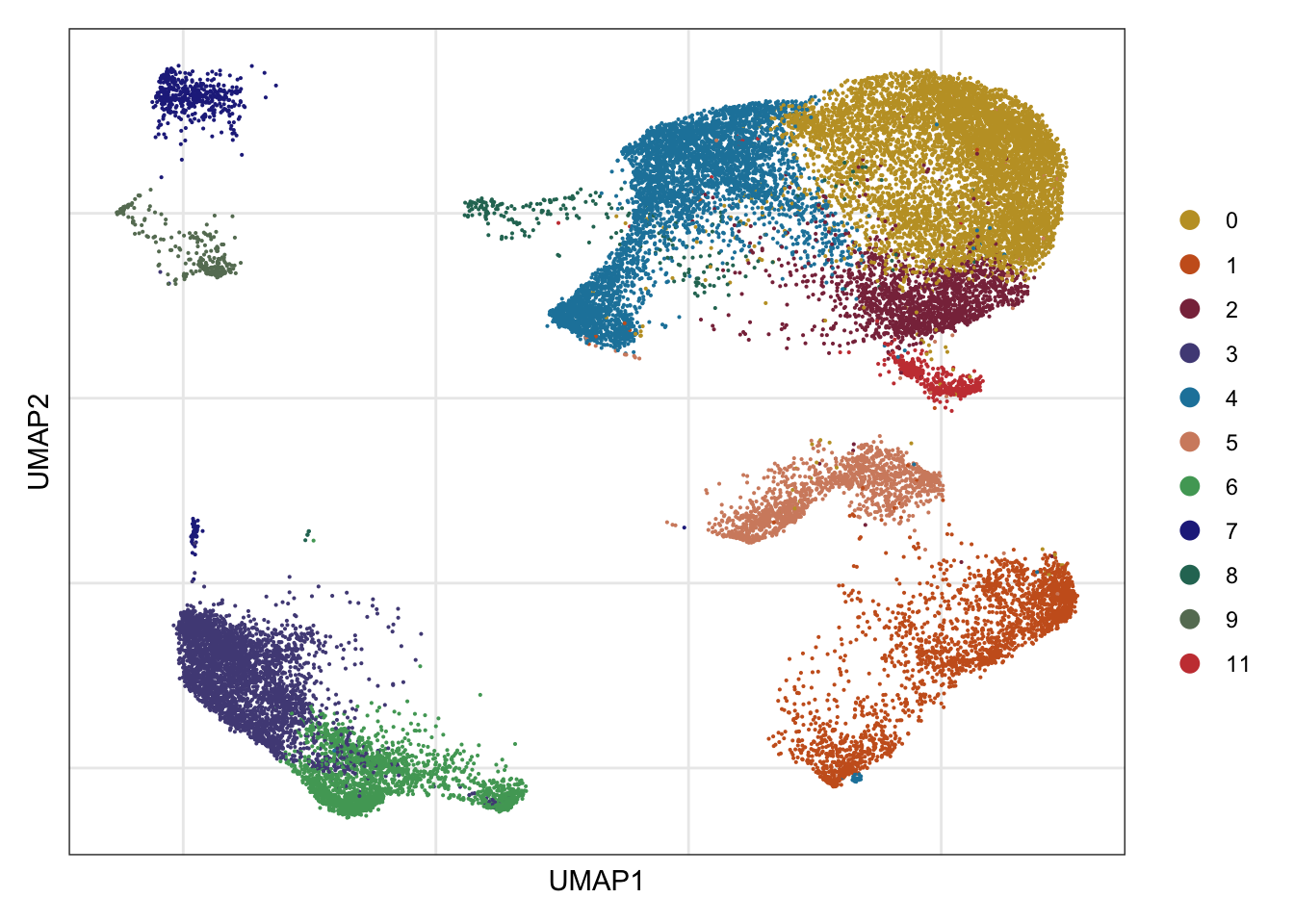

clustering
## visualize input data
DimPlot(seurat, reduction = "umap", cols=colPal)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")

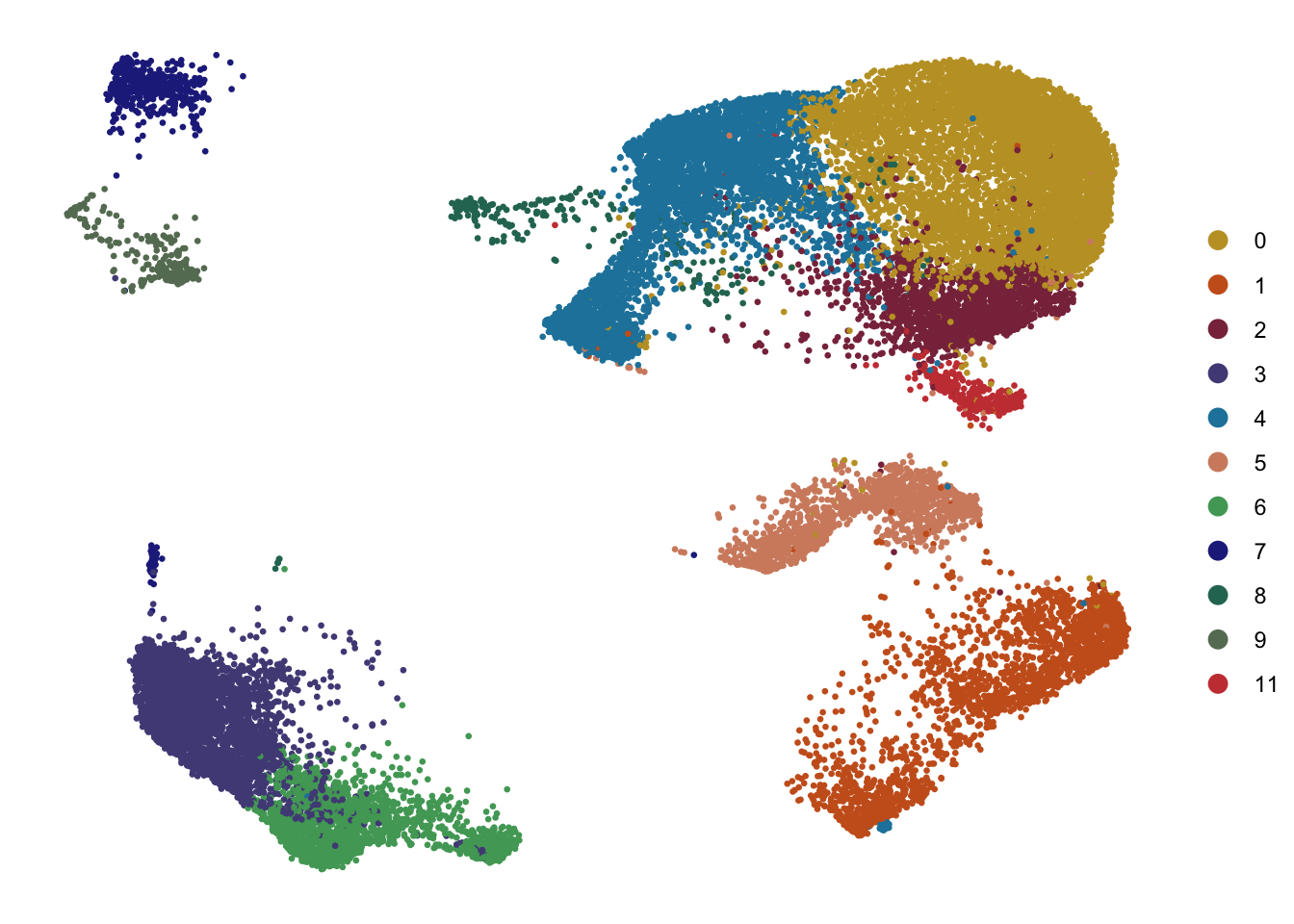

DimPlot(seurat, reduction = "umap", cols=colPal, pt.size=0.5)+
theme_void()

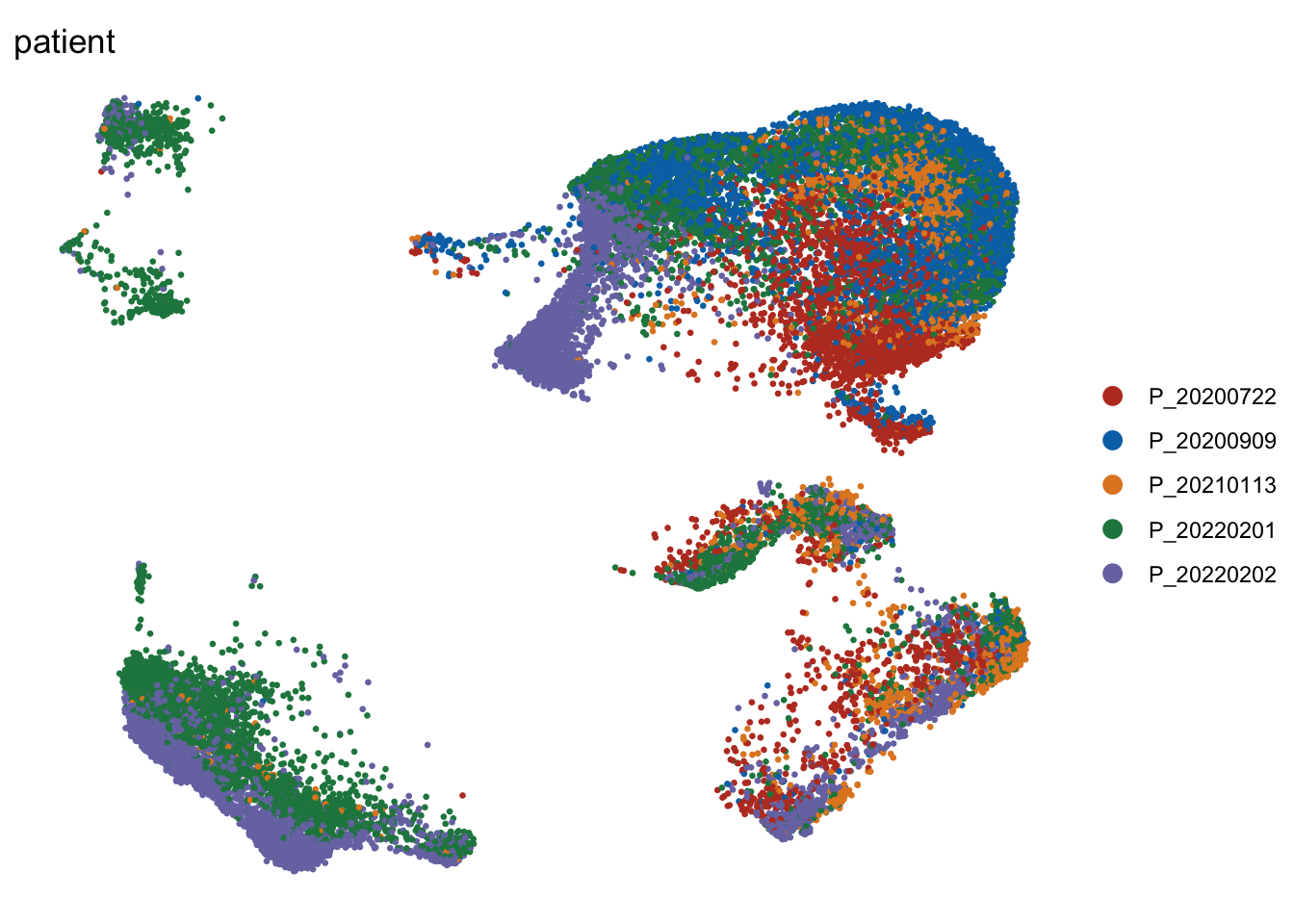

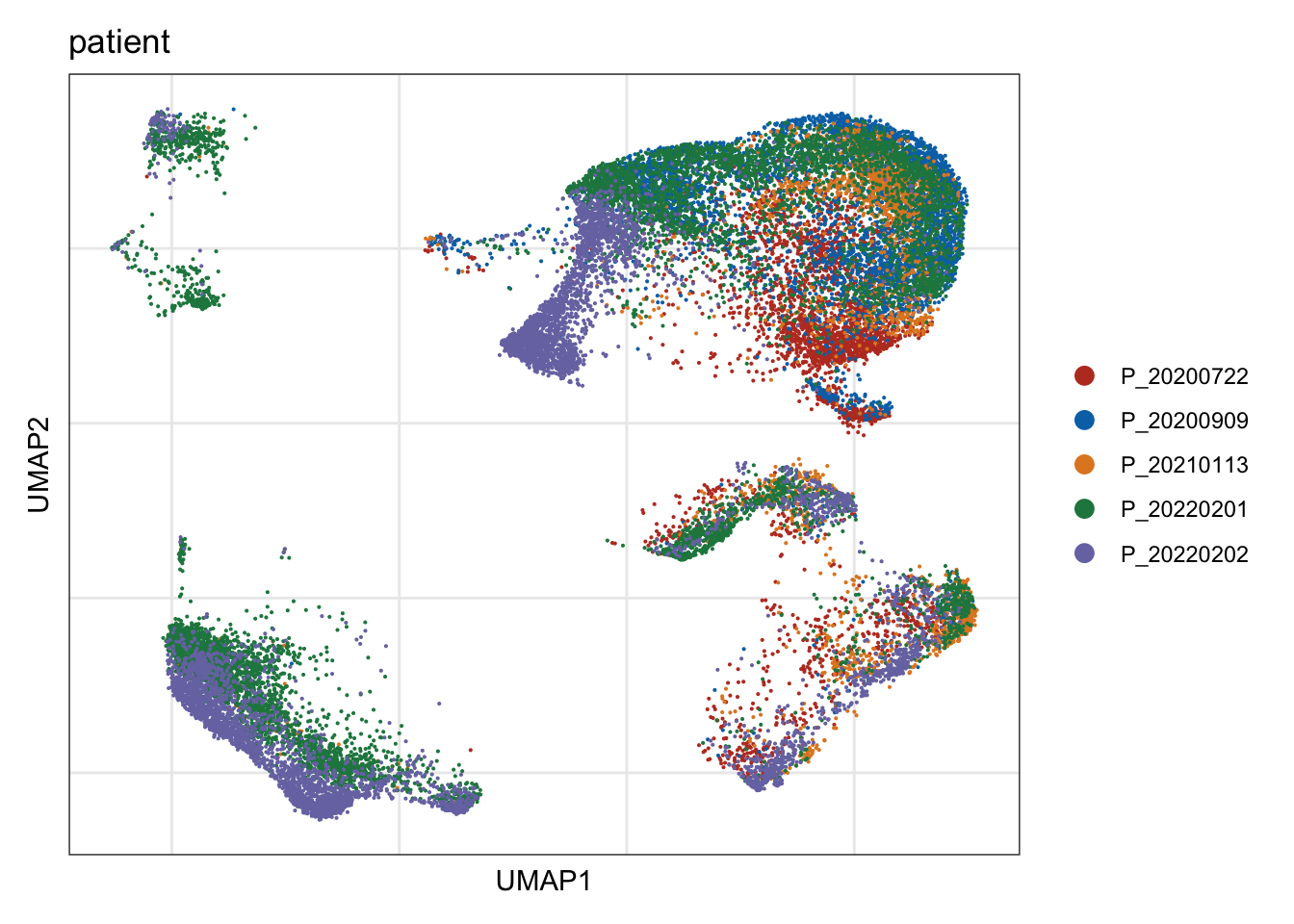

patient
## visualize input data
DimPlot(seurat, reduction = "umap", cols=colPat, group.by = "patient")+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")
DimPlot(seurat, reduction = "umap", cols=colPat, group.by = "patient",
pt.size=0.5, shuffle = T)+
theme_void()

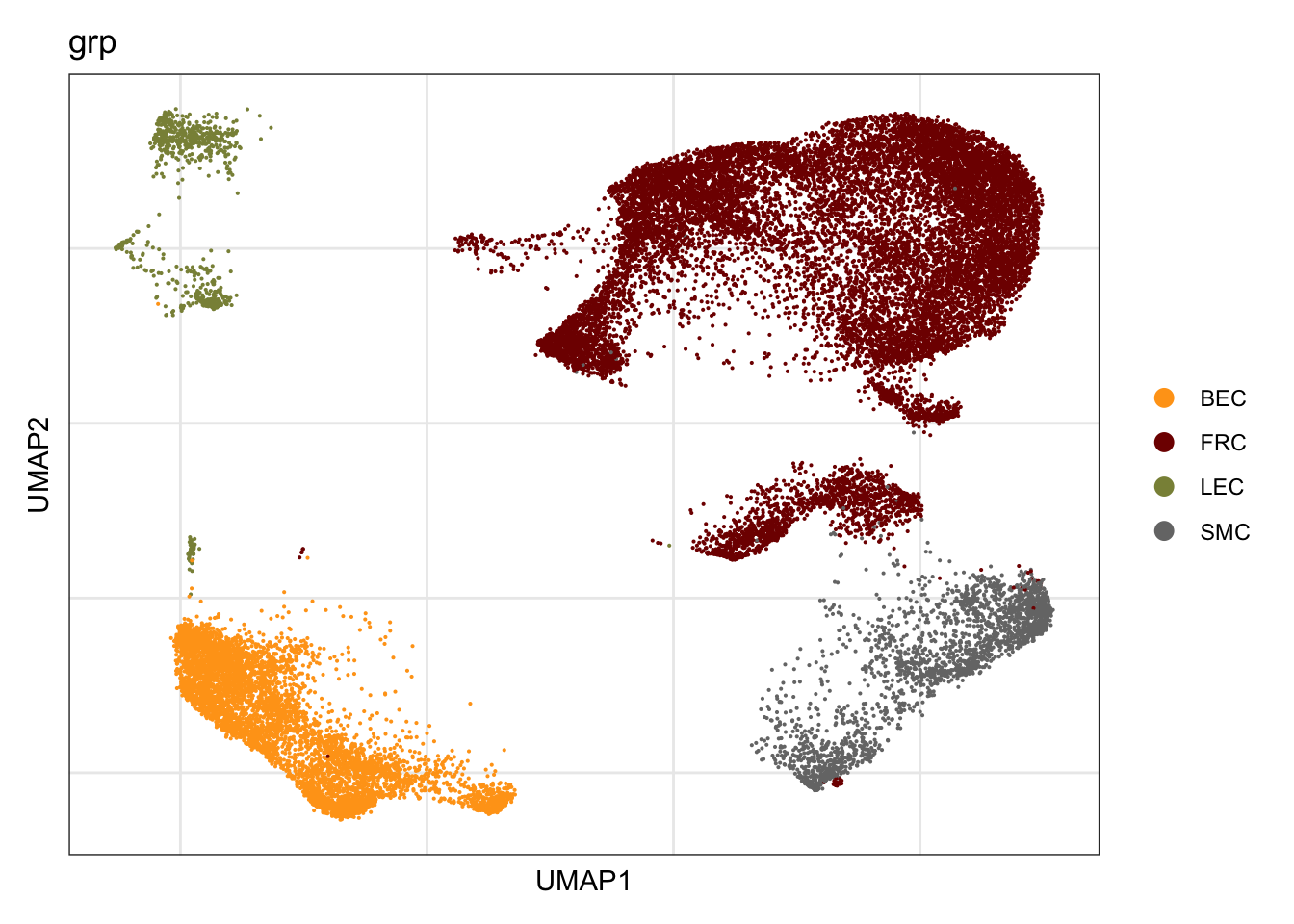

grp
## visualize input data
DimPlot(seurat, reduction = "umap", cols=colGrp, group.by = "grp")+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")

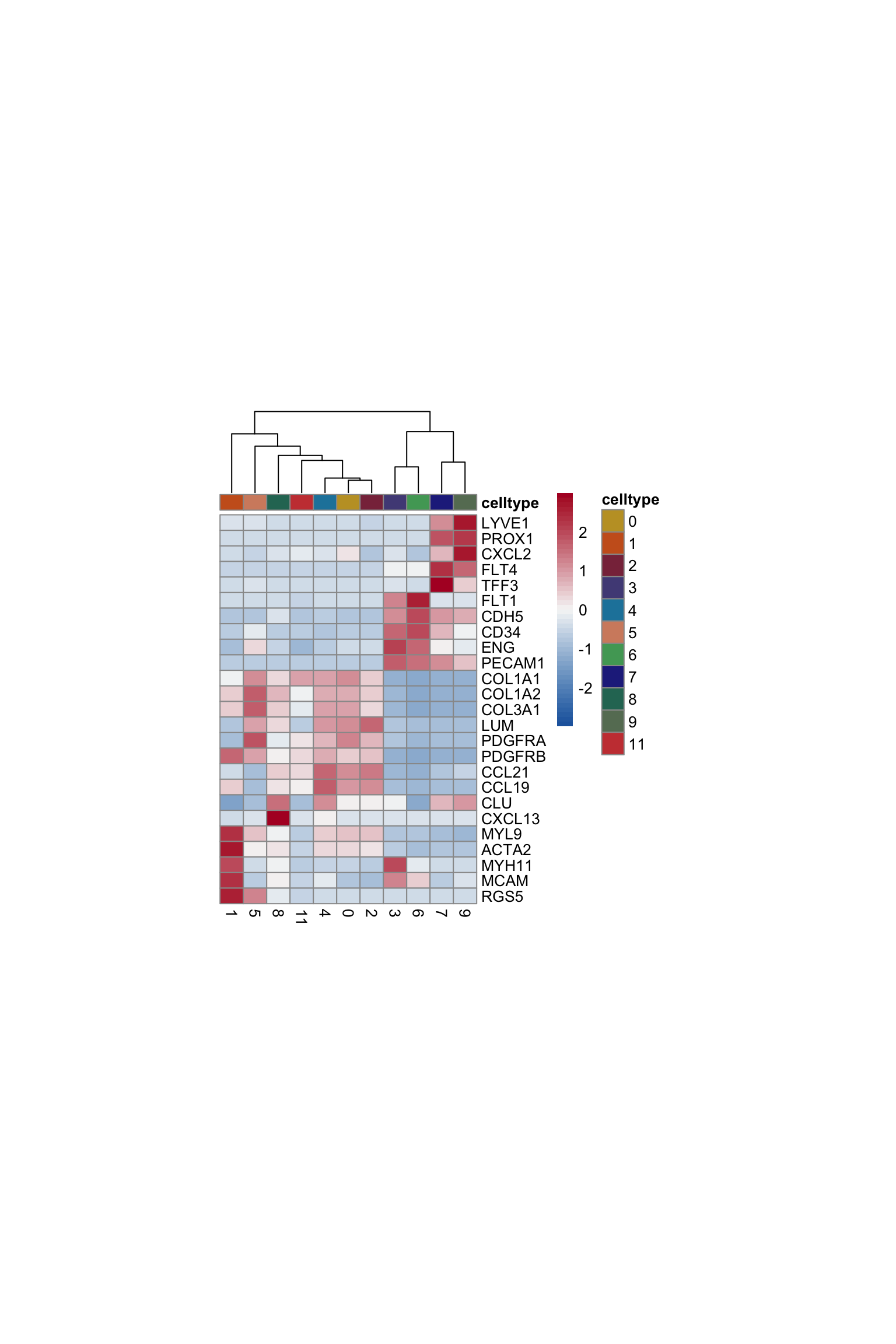

vis selected stroma marker
genes <- data.frame(gene=rownames(seurat)) %>%
mutate(geneID=gsub("^.*\\.", "", gene))
selGenesAll <- read_tsv(file = paste0(basedir,
"/data/overallStromaMarkerRest.txt")) %>%
left_join(., genes, by = "geneID")
selGenesAll <- selGenesAll %>% filter(!gene == "ENSG00000232995.RGS5")
seurat$RNA_snn_res.0.25 <- factor(seurat$RNA_snn_res.0.25,
levels = c("1", "8", "4", "0", "2", "5", "11",
"7", "9", "3", "6"))
Idents(seurat) <- seurat$RNA_snn_res.0.25
pOut <- avgHeatmap(seurat = seurat, selGenes = selGenesAll,
colVecIdent = colPal,
ordVec=levels(seurat),
gapVecR=NULL, gapVecC=NULL,cc=T,
cr=F, condCol=F)

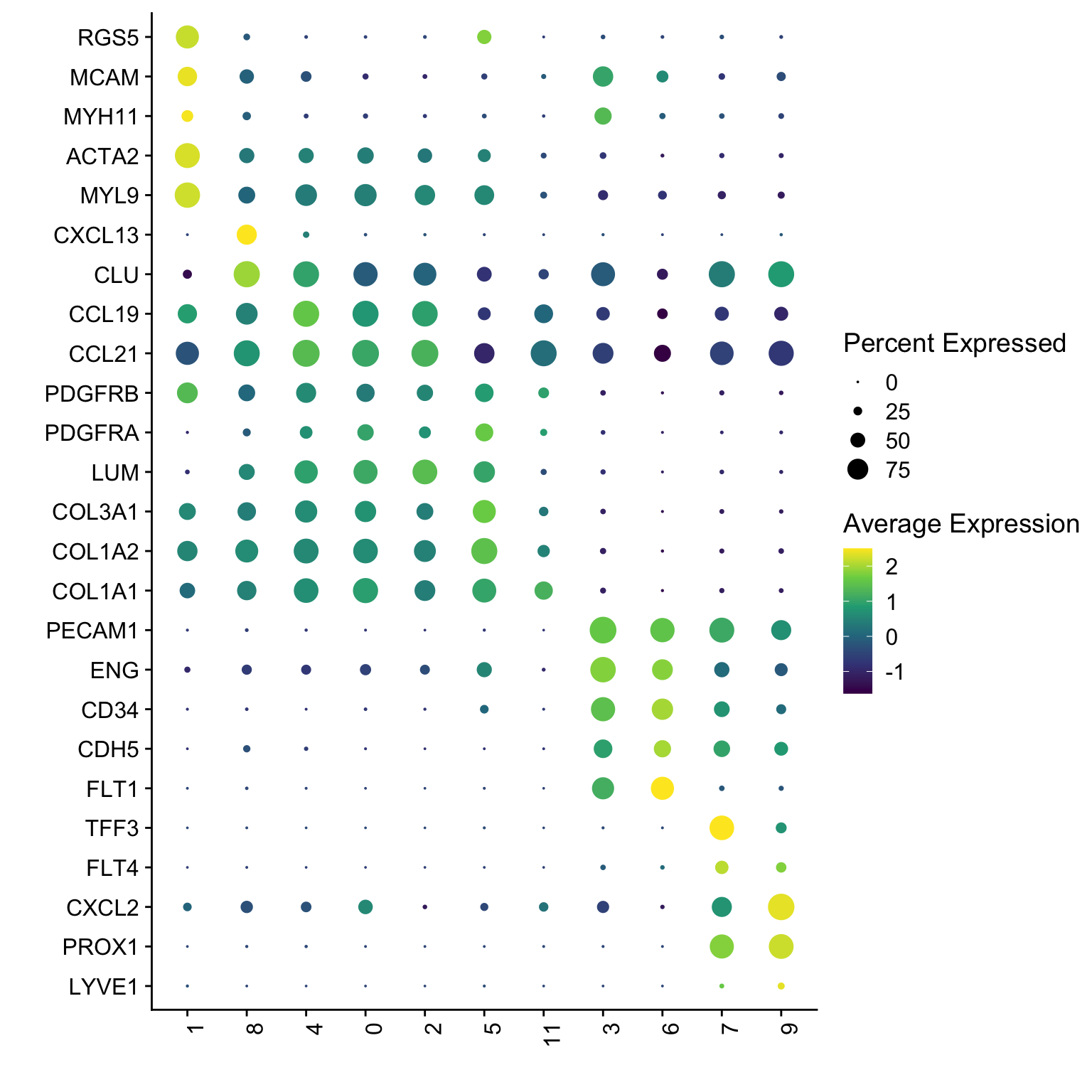

Dotplot
DotPlot(seurat, assay="RNA", features = selGenesAll$gene, scale =T,
cluster.idents = T) +
scale_color_viridis_c() +
coord_flip() +
theme(axis.text.x = element_text(angle = 90, hjust = 1)) +
scale_x_discrete(breaks=selGenesAll$gene, labels=selGenesAll$geneID) +
xlab("") + ylab("")

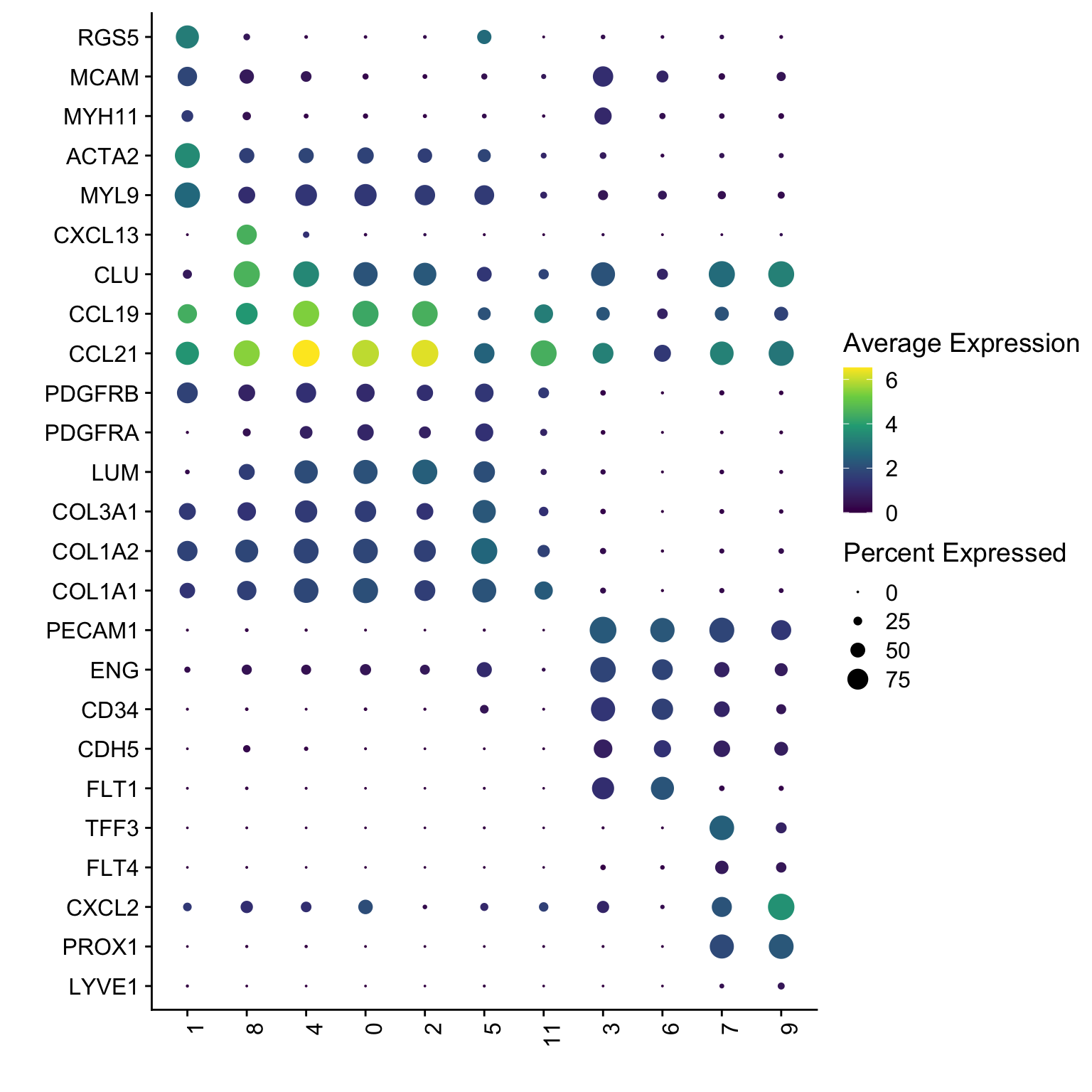

DotPlot(seurat, assay="RNA", features = selGenesAll$gene, scale =F,
cluster.idents = T) +
scale_color_viridis_c() +
coord_flip() +
theme(axis.text.x = element_text(angle = 90, hjust = 1)) +
scale_x_discrete(breaks=selGenesAll$gene, labels=selGenesAll$geneID) +
xlab("") + ylab("")

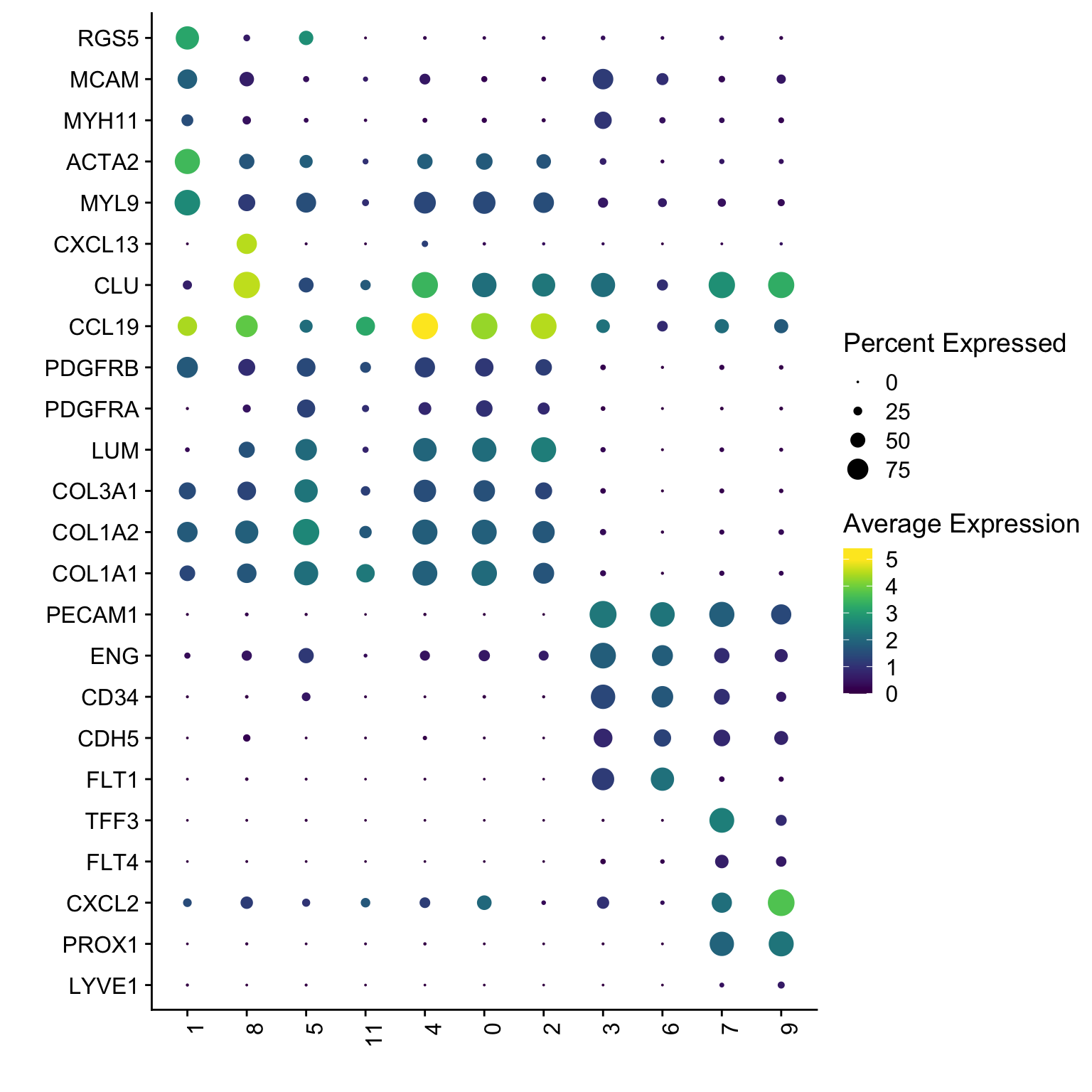

selGenesAll <- selGenesAll %>% filter(!geneID == "CCL21")
DotPlot(seurat, assay="RNA", features = selGenesAll$gene, scale =F,
cluster.idents = T) +
scale_color_gradientn(colors=colorRampPalette(c(viridis::viridis(12),"#FDE725FF"))(50)) +
coord_flip() +
theme(axis.text.x = element_text(angle = 90, hjust = 1)) +
scale_x_discrete(breaks=selGenesAll$gene, labels=selGenesAll$geneID) +
xlab("") + ylab("")
session info
sessionInfo()R version 4.3.0 (2023-04-21)
Platform: x86_64-apple-darwin20 (64-bit)
Running under: macOS Ventura 13.4.1
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.3-x86_64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.3-x86_64/Resources/lib/libRlapack.dylib; LAPACK version 3.11.0
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
time zone: Europe/Berlin
tzcode source: internal
attached base packages:
[1] stats4 stats graphics grDevices utils datasets methods base
other attached packages:
[1] scater_1.28.0 scuttle_1.10.3 SingleCellExperiment_1.22.0
[4] SummarizedExperiment_1.30.2 Biobase_2.60.0 GenomicRanges_1.52.1
[7] GenomeInfoDb_1.36.4 IRanges_2.36.0 S4Vectors_0.40.1
[10] BiocGenerics_0.48.0 MatrixGenerics_1.12.3 matrixStats_1.2.0
[13] pheatmap_1.0.12 ggsci_3.0.1 here_1.0.1
[16] runSeurat3_0.1.0 ggpubr_0.6.0 lubridate_1.9.3
[19] forcats_1.0.0 stringr_1.5.1 readr_2.1.5
[22] tidyr_1.3.1 tibble_3.2.1 tidyverse_2.0.0
[25] Seurat_5.0.2 SeuratObject_5.0.1 sp_2.1-3
[28] purrr_1.0.2 cowplot_1.1.3 ggplot2_3.5.0
[31] reshape2_1.4.4 dplyr_1.1.4
loaded via a namespace (and not attached):
[1] RcppAnnoy_0.0.22 splines_4.3.0 later_1.3.2
[4] bitops_1.0-7 polyclip_1.10-6 fastDummies_1.7.3
[7] lifecycle_1.0.4 rstatix_0.7.2 rprojroot_2.0.4
[10] vroom_1.6.5 globals_0.16.2 lattice_0.22-5
[13] MASS_7.3-60.0.1 backports_1.4.1 magrittr_2.0.3
[16] plotly_4.10.4 rmarkdown_2.26 yaml_2.3.8
[19] httpuv_1.6.14 sctransform_0.4.1 spam_2.10-0
[22] spatstat.sparse_3.0-3 reticulate_1.35.0 pbapply_1.7-2
[25] RColorBrewer_1.1-3 abind_1.4-5 zlibbioc_1.46.0
[28] Rtsne_0.17 RCurl_1.98-1.14 GenomeInfoDbData_1.2.10
[31] ggrepel_0.9.5 irlba_2.3.5.1 listenv_0.9.1
[34] spatstat.utils_3.0-4 goftest_1.2-3 RSpectra_0.16-1
[37] spatstat.random_3.2-3 fitdistrplus_1.1-11 parallelly_1.37.1
[40] DelayedMatrixStats_1.22.6 leiden_0.4.3.1 codetools_0.2-19
[43] DelayedArray_0.26.7 tidyselect_1.2.0 farver_2.1.1
[46] viridis_0.6.5 ScaledMatrix_1.8.1 spatstat.explore_3.2-6
[49] jsonlite_1.8.8 BiocNeighbors_1.18.0 ellipsis_0.3.2
[52] progressr_0.14.0 ggridges_0.5.6 survival_3.5-8
[55] tools_4.3.0 ica_1.0-3 Rcpp_1.0.12
[58] glue_1.7.0 gridExtra_2.3 xfun_0.42
[61] withr_3.0.0 fastmap_1.1.1 fansi_1.0.6
[64] rsvd_1.0.5 digest_0.6.34 timechange_0.3.0
[67] R6_2.5.1 mime_0.12 colorspace_2.1-0
[70] scattermore_1.2 tensor_1.5 spatstat.data_3.0-4
[73] utf8_1.2.4 generics_0.1.3 data.table_1.15.2
[76] httr_1.4.7 htmlwidgets_1.6.4 S4Arrays_1.0.6
[79] uwot_0.1.16 pkgconfig_2.0.3 gtable_0.3.4
[82] lmtest_0.9-40 XVector_0.40.0 htmltools_0.5.7
[85] carData_3.0-5 dotCall64_1.1-1 scales_1.3.0
[88] png_0.1-8 knitr_1.45 rstudioapi_0.15.0
[91] tzdb_0.4.0 nlme_3.1-164 zoo_1.8-12
[94] KernSmooth_2.23-22 vipor_0.4.7 parallel_4.3.0
[97] miniUI_0.1.1.1 pillar_1.9.0 grid_4.3.0
[100] vctrs_0.6.5 RANN_2.6.1 promises_1.2.1
[103] BiocSingular_1.16.0 car_3.1-2 beachmat_2.16.0
[106] xtable_1.8-4 cluster_2.1.6 beeswarm_0.4.0
[109] evaluate_0.23 cli_3.6.2 compiler_4.3.0
[112] rlang_1.1.3 crayon_1.5.2 future.apply_1.11.1
[115] ggsignif_0.6.4 labeling_0.4.3 ggbeeswarm_0.7.2
[118] plyr_1.8.9 stringi_1.8.3 BiocParallel_1.34.2
[121] viridisLite_0.4.2 deldir_2.0-4 munsell_0.5.0
[124] lazyeval_0.2.2 spatstat.geom_3.2-9 Matrix_1.6-5
[127] RcppHNSW_0.6.0 hms_1.1.3 patchwork_1.2.0
[130] bit64_4.0.5 sparseMatrixStats_1.12.2 future_1.33.1
[133] shiny_1.8.0 ROCR_1.0-11 igraph_2.0.2
[136] broom_1.0.5 bit_4.0.5 date()[1] "Wed Mar 13 20:05:05 2024"
